Bilgisayar

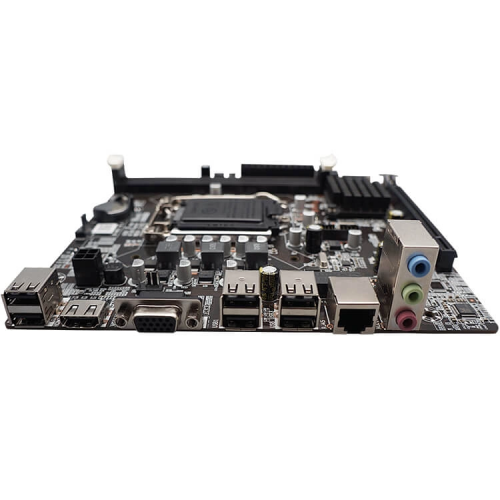

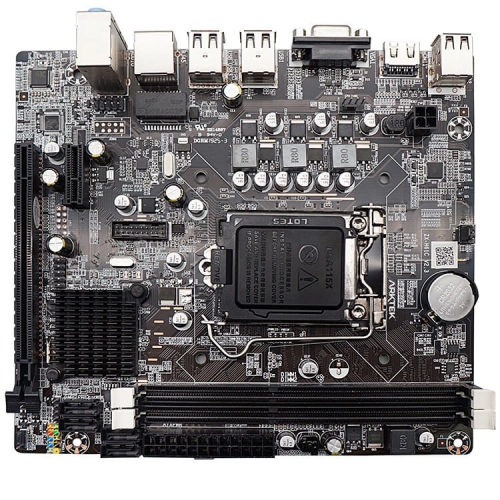

Intel H61
+ Model: AK-H61M EL
+ Soket: LGA1155
+ Çipset: Intel H61
+ Bellek Desteği: Çift Kanallı DDR3
genel bakış
- İşlemci: Intel Core™ i7/Core™
i5/Core™ i3/Pentium®/Celeron® İşlemciler için Intel® Socket 1155 - Yonga Seti: Intel H61 Yonga Seti
- Yerleşik Grafikler: Intel® Graphics Media Accelerator X4500 HD
- Bellek: DDR3 1600/ 1333/1066 bellek
- DIMM: 2 x Bellek Yuvası
- LAN: Realtek 8105E 100 Mb/sn
- Ses: Realtek 6 Kanallı Ses Codec'i
- SATA: 4 x SATA bağlantı noktası, 1 x M.2 Yuva
- Yerleşik Pin Başlıkları / Konektörler:
2 x USB 2.0 pin başlığı, ek 4 USB 2.0 bağlantı noktasını destekler
1 x Ön Panel Ses pin başlığı - Yuvalar:
1 x PCI Express x16 yuvası
1 x PCI E x1 yuvası - Form Faktörü: Mikro-ATX (21 x 21 cm)
- Montaj: 6 montaj deliği
Spesifikasyon
| INTEL H61 | ||
|---|---|---|
| CPU Support | Intel® Socket 1155 for Intel Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors | |
| Chipset | Intel H61 Chipset | |
| On-Board Graphics | Intel® Graphics Media Accelerator X4500 HD | |
| Memory | DDR3 1600/ 1333/1066 memory | |
| DIMM | 2 x Memory Slots | |
| LAN | Realtek 8105E100 Mbps | |
| Audio | Realtek 6 Channel Audio Codec | |
| SATA | 4 x SATA port, 1 x M.2 Port | |
| ON-Board Pinheaders / Connectors | 2 x USB 2.0 pinheader supports additional 4 USB 2.0 ports 1 x Front Panel Audio pinheader | |
| Form Factor | Micro-ATX (21 x 21 cm) | |
| Slots | 1 x PCI Express x16 slot, 1 x PCI Express x1 slot | |
| Mounting | 6 mounting holes | |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD | |
| Remark | All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. |
