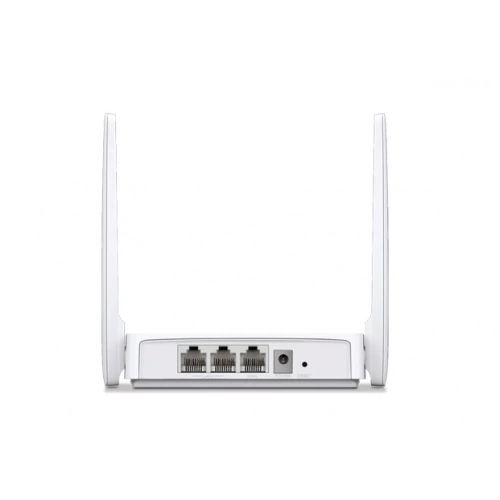

| Ethernet Ports | 2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port |
|---|
| Buton | Reset Button |
|---|
| Harici G Kaynağı | 5V/0.6A |
|---|
| Boyutlar (E X B X Y) | 114 mm × 94 mm × 26 mm |
|---|
| Anten Tipi | 2 tumyedekler2.sh tumyedekler.sh tumy.sh 5dBi |
|---|

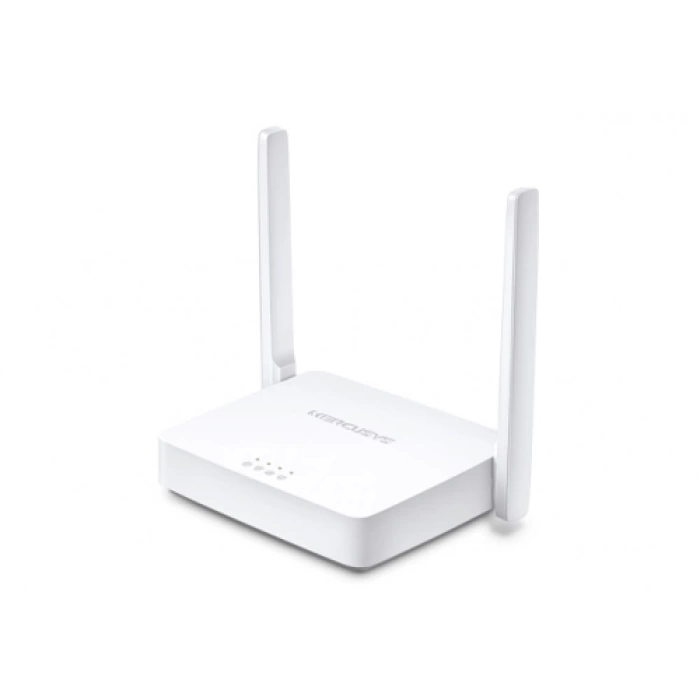

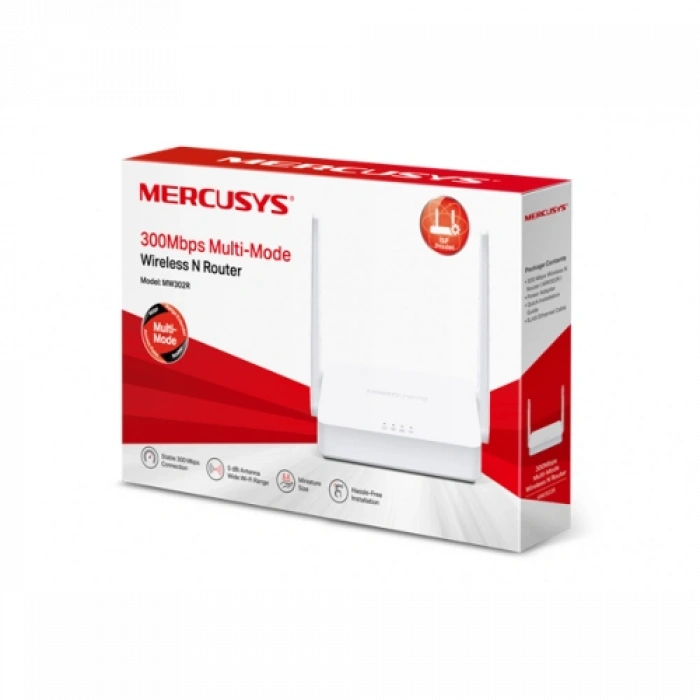

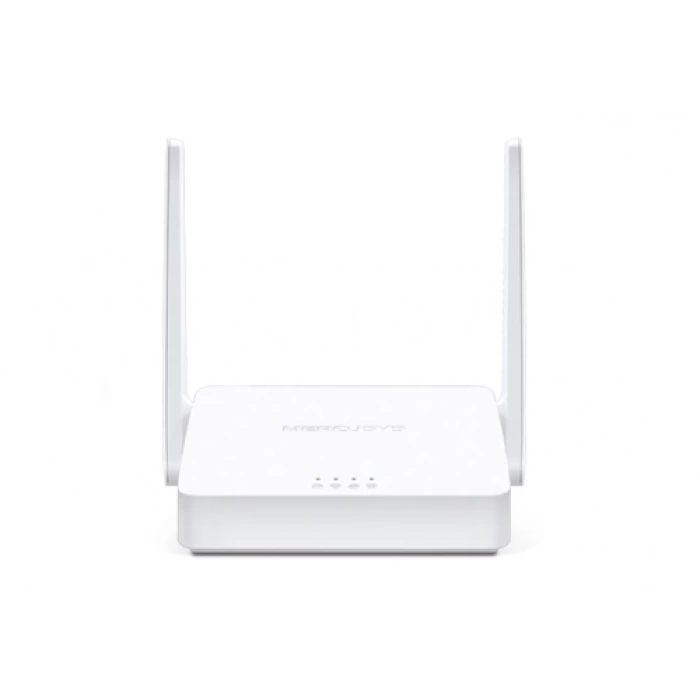

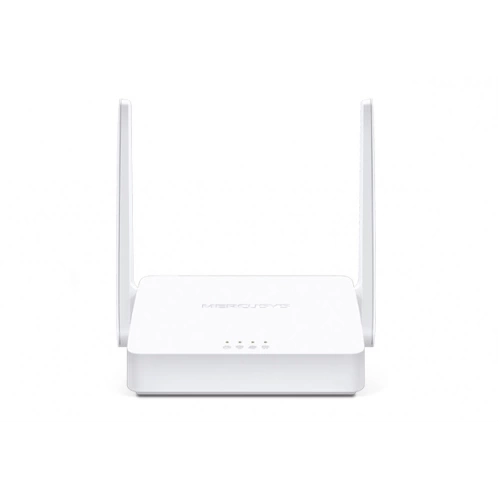

| Package Contents | 300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable |
|---|
| Wireless Standardı | IEEE 802.11b/g/n |
|---|
| Frekans | 2.4-2.4835GHz |
|---|
| Sinyal hızı | • 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic) |
|---|
| Alım hassasiyeti | • 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER |
|---|
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridging |
|---|
| Wireless Security | WPA-PSK / WPA2-PSK |
|---|
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
|---|
| DHCP | Server |
|---|
| Port Forwarding | Virtual Server, UPnP, DMZ |
|---|
| Management | Access Control, Local Management, Remote Management |
|---|
| Firewall Security | IP and MAC Address Binding |
|---|
| Guest Network | 2.4GHz Guest Network |
|---|
| Protocols | IPv4, IPv6 |
|---|
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing |
|---|
| Transmission Power | <20dBm (EIRP) |
|---|
