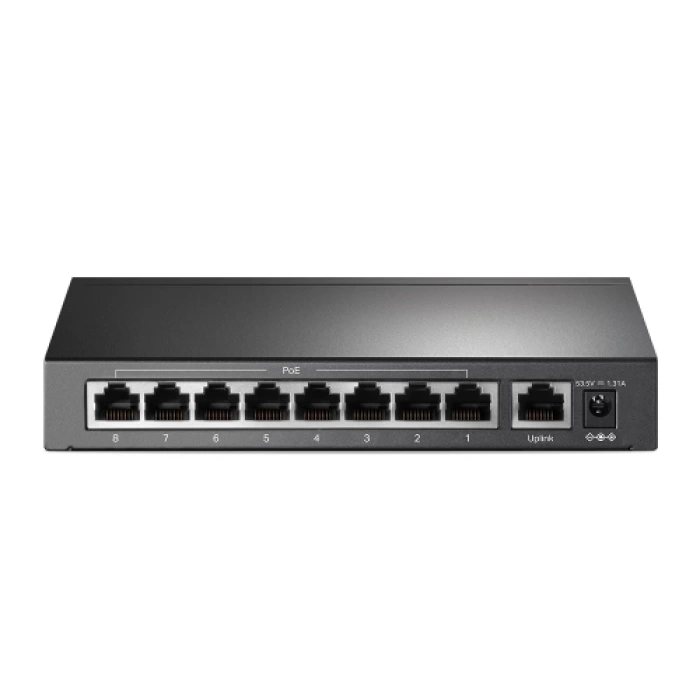

| Arabirim | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX |
|---|
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) |
|---|
| Fan Sayısı | Fanless |
|---|
| Fiziksel Güvenlik Kilidi | Yes |
|---|
| Harici Güç Kaynağı | External Power Adapter (Output: 53.5VDC / 1.31A) |
|---|
| Paket Yönlendirme Hızı | 1.3392 Mpps |
|---|

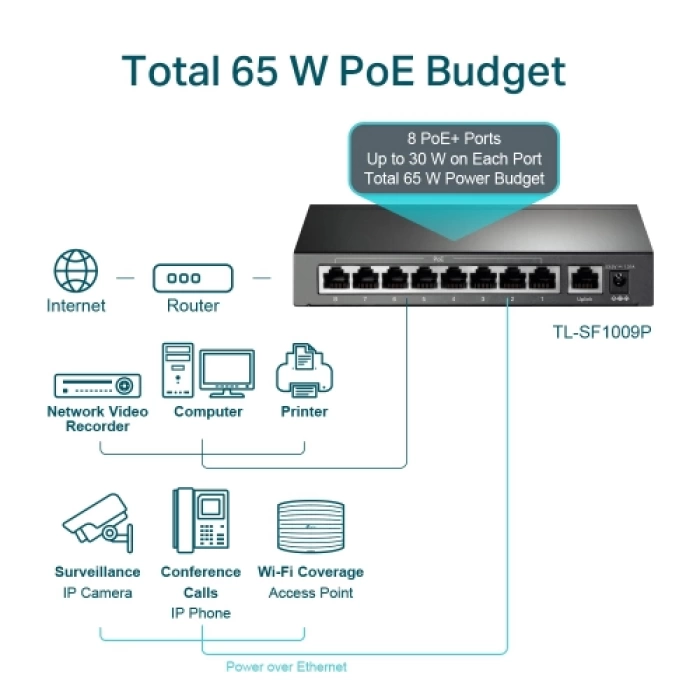

| PoE Portları (RJ45) | • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W |
|---|
| MAC Adres Tablosu | 2K |
|---|
| Jumbo Frame | 2 KB |
|---|
| Switching Kapasitesi | 1.8 Gbps |
|---|
| Boyutlar ( W X D X H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
|---|
| Maks. Güç Tüketimi | • 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected) |
|---|
| Max Heat Dissipation | • 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected) |
|---|
