| Arabirim | 24× PoE+ 10/100 Mbps RJ45 Ports2× 10/100/1000 Mbps RJ45 Ports2× Combo Gigabit SFP Slots |
|---|
| Ağ Medyası | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-X MMF, SMF |
|---|
| Fan Sayısı | 2 Fans |
|---|
| Fiziksel Güvenlik Kilidi | Yes |
|---|
| Güç Kaynağı | 100-240 VAC, 50/60 Hz |
|---|
| Paket Yönlendirme Hızı | 6.5472 Mpps |
|---|

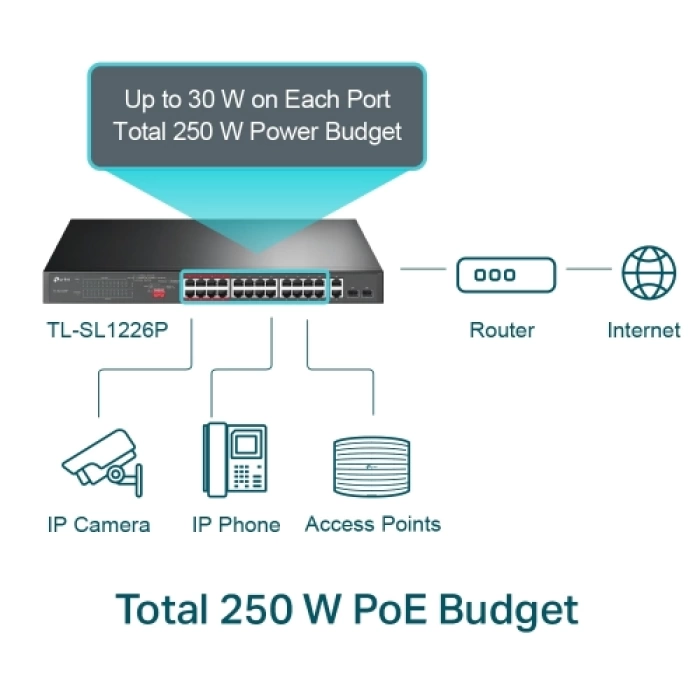

| PoE+ Portları (RJ45) | Standard: 802.3at/802.3af compliantPoE Ports: Port 1 – Port 24PoE Power Budget: 250 W |
|---|
| MAC Adres Tablosu | 8 K |
|---|
| Jumbo Frame | 10 KB |
|---|
| Switching Kapasitesi | 8.8 Gbps |
|---|
| Boyutlar ( W X D X H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
|---|
| Maks. Güç Tüketimi | 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) |
|---|
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
|---|
